Full HD Video Record CMOS Medical Camera Processor For Rigid Surgical Gynecology Laparoscope Camera System
$1,098.00
Availability:
In stock
Out of stock
Weight
5 kg
Resolution
Product Description
Product Parameters
Product Item No. | H2MRU(1080P Carema) |
System Parameters | ||
Input Interface | 1080P | |

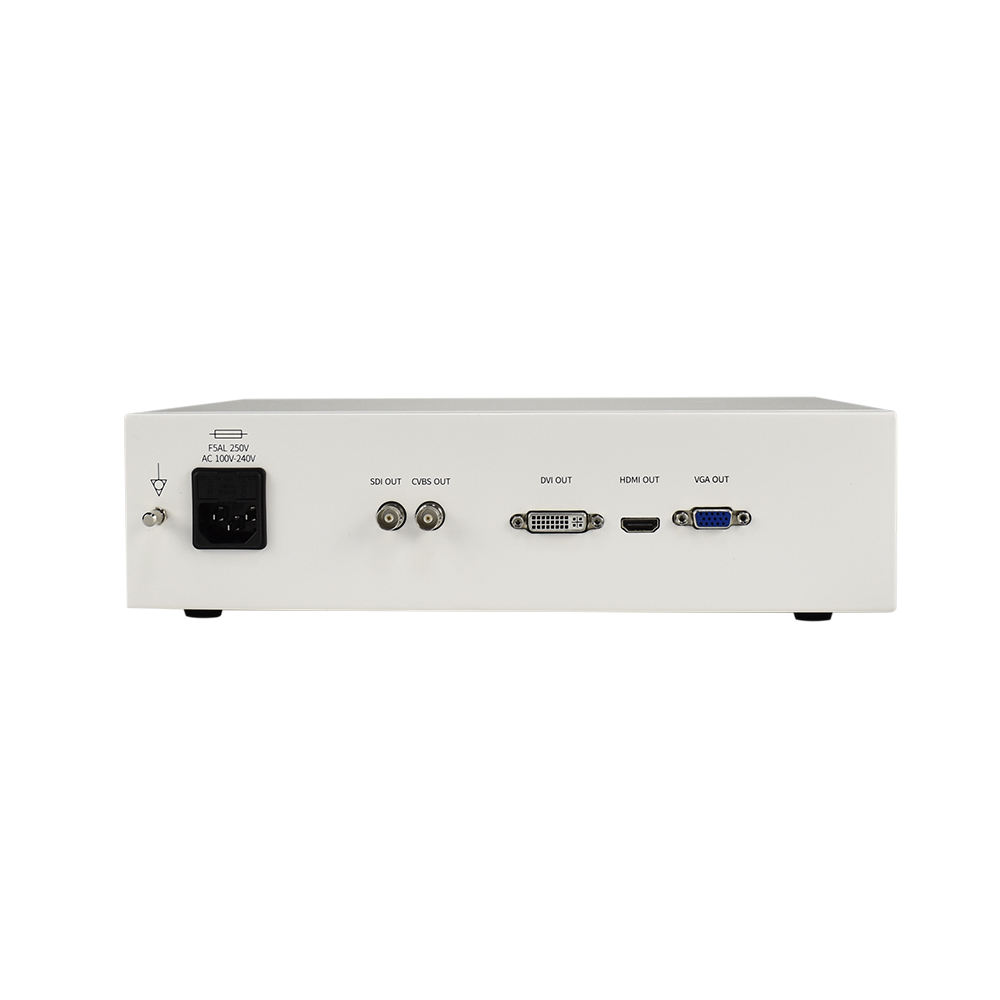

Output Interface | HDMI+DVI+VGA+SDI+CVBS | |
Keypad Control | Control the motherboard menu and shortcut keys through RX/TX | |
Power | AC110V~240V | |
U Disk | U disk USB2.0+USB3.0 (up to 32GB) to record and take photos | |
Shortcut Key Function | Freeze/white balance/video/photograph/digital zoom | |
SNR(Signal Noise Ratio) | <45db | |
Working Environment | -10°C~60°C | |
Product Size | L336*W330*H116mm | |
Product Color | Black or Blue is available | |
Camera Parameters | ||
Image Sensor | 1/1.8” SONY CMOS | |
Effective Pixels | 1845(H) × 1097(V)Approx. 2.13M pixels | |
Resolution | SDI 1080P | |
FREEZE | Support | |
AWB | Support | |
D-ZOOM | 0-8x | |
Brightness | 1-30 steps | |
Lens Mode | Transforaminal/Fiber/Arthroscope/Cystoscope/Hystero/Raparoscope/E.N.T | |
Language | Chinese, English, Japanese, Korean and other languages | |
Working Environment | -30°C~60°C | |
Power(Max.) Supply | DC12V ±10%<3W | |
Working Current | 140mA±10mA | |
Products Description
Product composition:
Endoscope imaging system consists of camera control system, handle camera and optical adapter (Adapter is OPTIONAL parts.)
Advantage:1. Factory Price, Prompt Shipping, Excellent After-Sales-Service; 2. Via deeper contrasts with crisp detail providing clearer, richer and more realistic colours;3. Real field of view is better for observation of regular pathology and vascular;4. Universal camera model with USB recorder.
Compatible:● Adaptable to wide range of rigid endoscopes such as laparoscopy, hysteroscopy, cysteroscopy, arthroscopes, sinuscopes.
● We offer you High Magnification, High Definition, High Definition plus and 1080P endoscopes.
● The universal camera processor with USB recorder；● Advanced diagnostic options with PIET；● Camera platform for all endoscopic applications.
● Abundent of output ports, no image flicker, no signal loss;
● Simplified OSD menu design, easy to operate；
● With USB video recorder and USB power supply ports /Built-in USB full high-definition image storage,Photo capture/Video recording function.
Endoscopy camera
● Full hd 1080P Camera, white balance, freeze zoom in and out through camera head;
● One-click single image freeze;
Advanced medical grade environmental protection plant, more than 2000 square meters of office environment, has won a number of national product R&D patents, has passed the international quality system CE/FCC/ROSH
and a series of product certifications, providing OEM/ODM services for a number of national well-known enterprises.
