USB3.0 1080p Full HD Medical Portable Endoscopic High Resolution CMOS Endoscope Camera For ENT Laparoscope Gynecology
$399.00
Availability:
In stock
Out of stock
Weight
3 kg
Resolution
Product Description
Product Parameters
Product Item No. | H2U3 |
System Parameters | ||
Key Words | USB3.0 Portable Endoscope Handle Camera | |
Sensor | 1/2.8” SONY CMOS | |
Effective Pixels | 1945(H) × 1109(V)Approx. 2.16M pixels | |
Scanning Mode | Progressive | |
Resolution | 1080P (60fps) | |
Min-illumination | Color:DSS:0.017LUX, BW DSS: 0.08 LUX | |
Quick Function | One key Auto white balance(AWB) | |
S/N Ratio | More than 42Db | |
Endoscope Handle Cord Length | 3M | |
Endoscope Mount | International standard C-mount, which can be connected to imported domestic hard mirrors | |
Working Temperature | -30°C~60°C | |
Power(Max.) Supply | DC5V ±10%(USB power supply) | |
Working Current | 1.2W(≤100mA ) | |
Product Size | 120*210mm | |

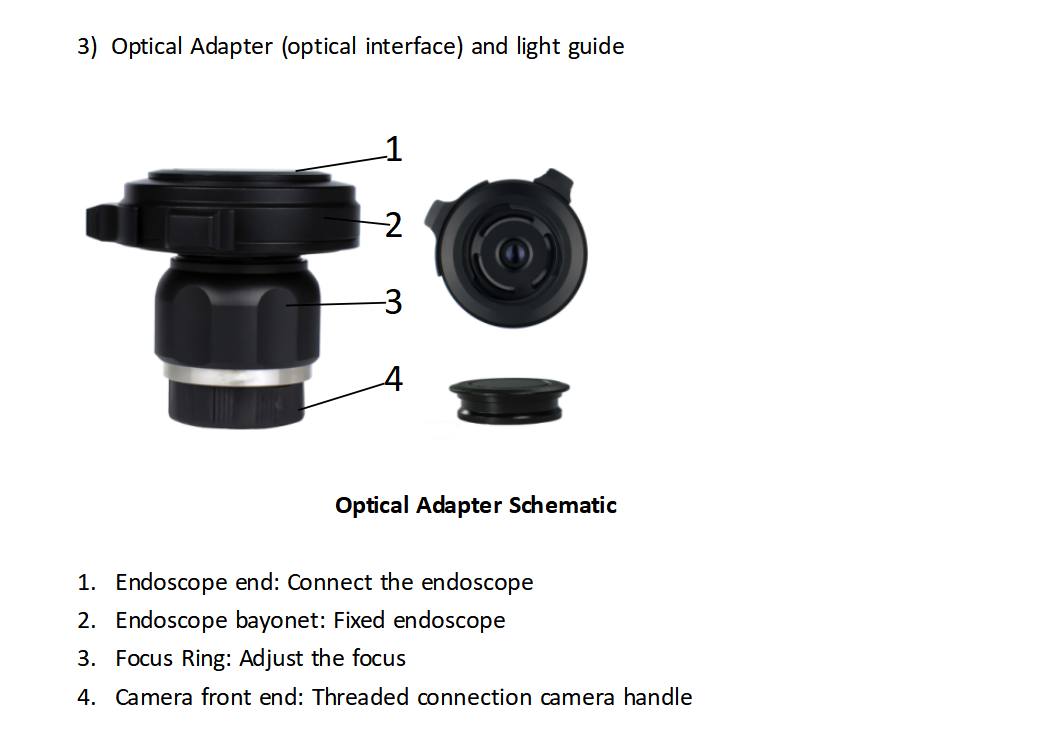

Please Note | The Optical Adapter is OPTIONAL part. |
Main Menu Parameters | ||
Brightness | 1-20 steps | |
AGC | 1-20 steps | |
BACKLIGHT | OFF/BLC/HLC/WDR | |
Color(AWB) | One key auto white balance | |
DNR | OFF/ON | |
Sharpness | 1-10 steps | |
MIRROR/FLIP | OK | |
DEFOG | OK | |
Language | Multi Language |
Products Description
Product Introduction:

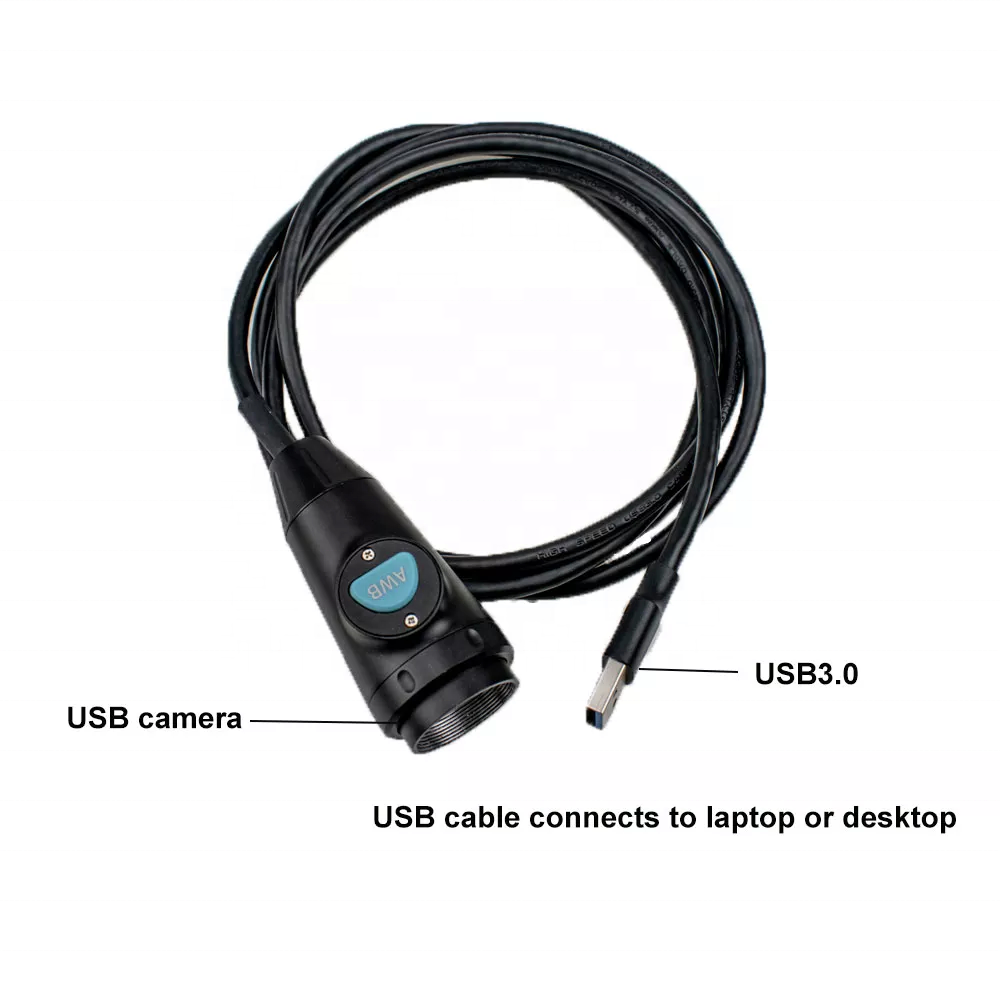

Connect with PC, Android devices, etc. via USB 3.0 port,perform master-slave half-duplex serial communication,It is suitable for scenarios such as medical endoscope industry, medical remote teaching and so on.

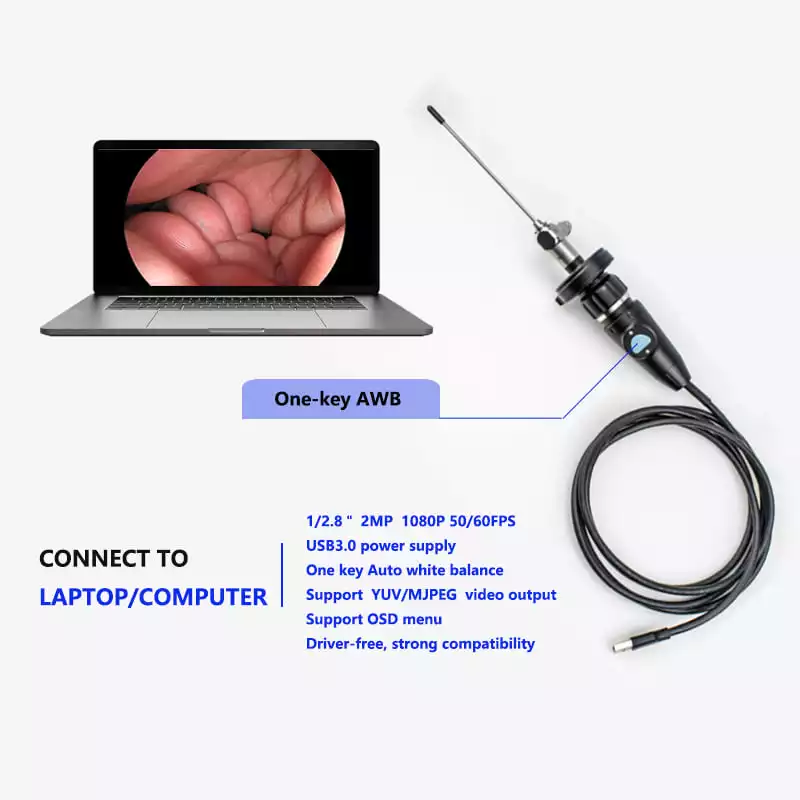

H2U3 Portable Endoscope Handle Camera Features:
● 1/2.8" 2MP 1080P 50/60FPS
● USB3.0 power supply

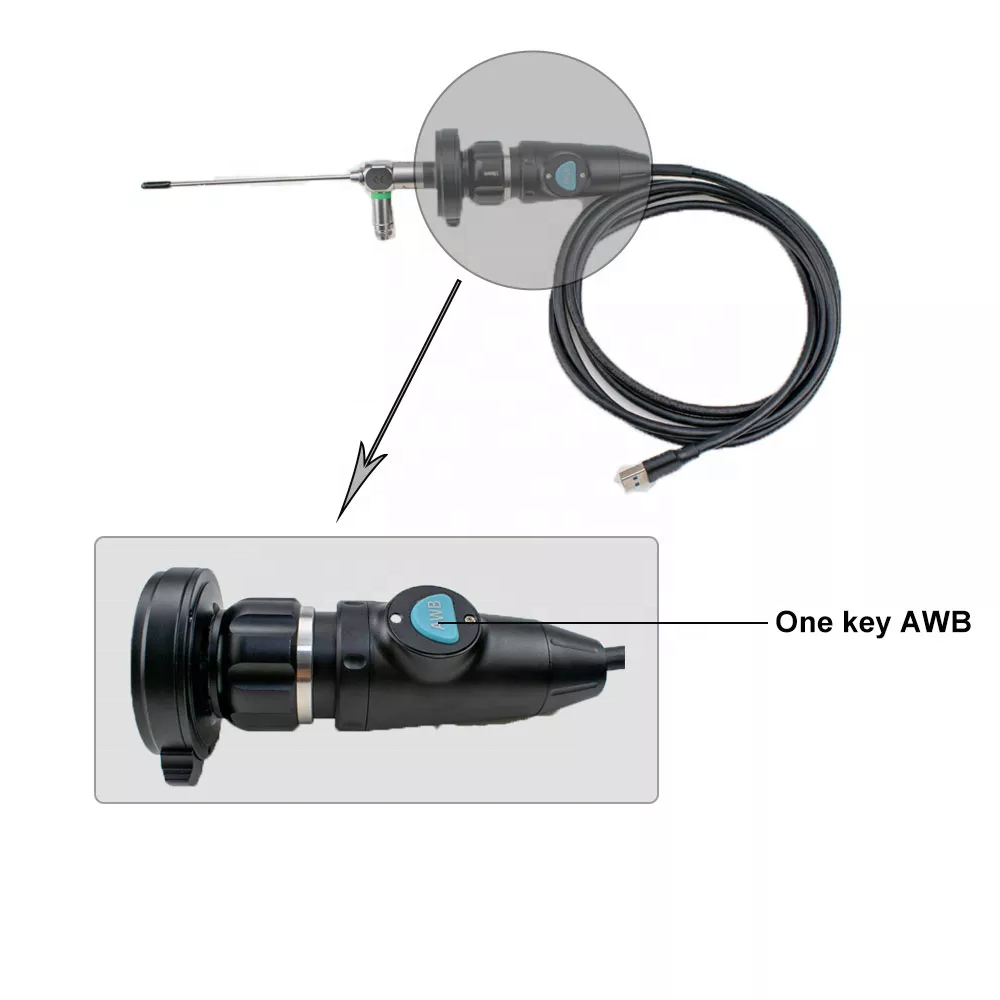

● One key Auto white balance
● Support YUV/MJPEG video output
● Support OSD menu
● Driver-free, strong compatibility
