1080p HDMI CVBS Output Endoscopy Video Processor Portable Camera Ent
$510.00
Availability:
In stock
Out of stock
Weight
3 kg
Resolution
Product Description
Product Parameters
Product Item No. | H2MC |
Parameters | ||
Key Words | Portable Endoscope Handle Camera | |
Sensor | 1/2.8” SONY CMOS | |
Effective Pixels | 1945(H) × 1092(V)Approx. 2.12M pixels | |
Output Signal | CVBS+HDMI | |
Frame Rate | 1080P (25fps/60fps) | |
S/N Ratio (Signal to Noise Ratio) | >42dB | |
Quick Function | Freeze, white balance, 0-8x zoom in and out | |
Brightness | 1-20 steps | |
Auto AGC | 1-20 steps | |
Sharpness | 1-20 steps | |

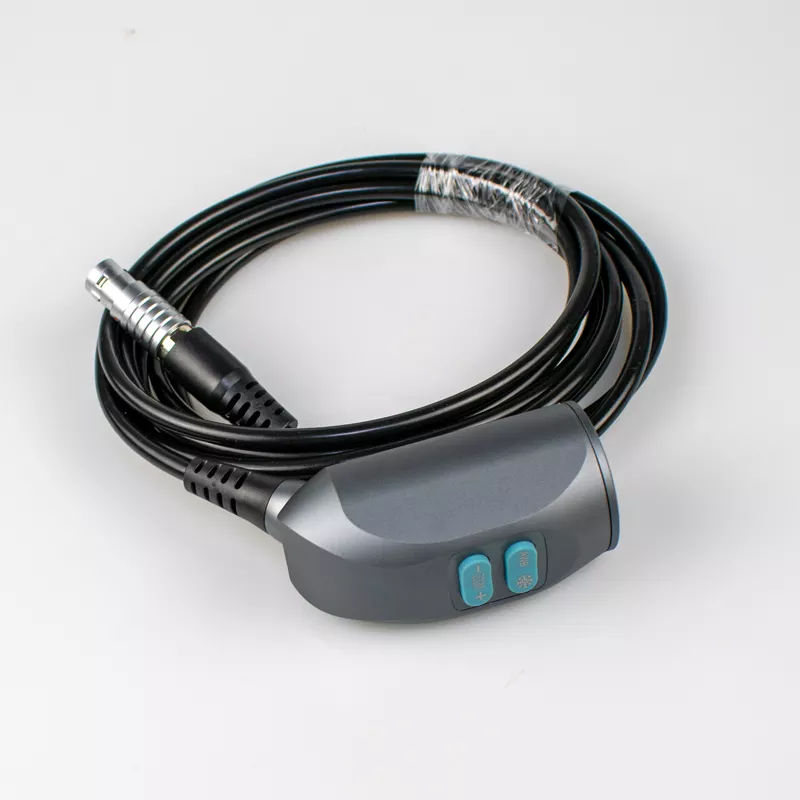

Endoscope Handle Cord Length | 3Meters | |
Endoscope Mount | International standard C-mount, which can be connected to imported domestic hard mirrors | |
Endoscope Mode | Transforaminal/Fiber/Arthroscope/Cystoscope/Hystero/Raparoscope/E.N.T | |
Waterproof | IP67 | |
Working Temperature | -30°C~60°C | |
Language | Chinese/English/Japanese/Korean polyglot | |
Power(Max.) Supply | DC12V | |
Power Consumption | 1.2W（≤100mA ） | |
Product Size | 115*90*36mm | |
Products Description

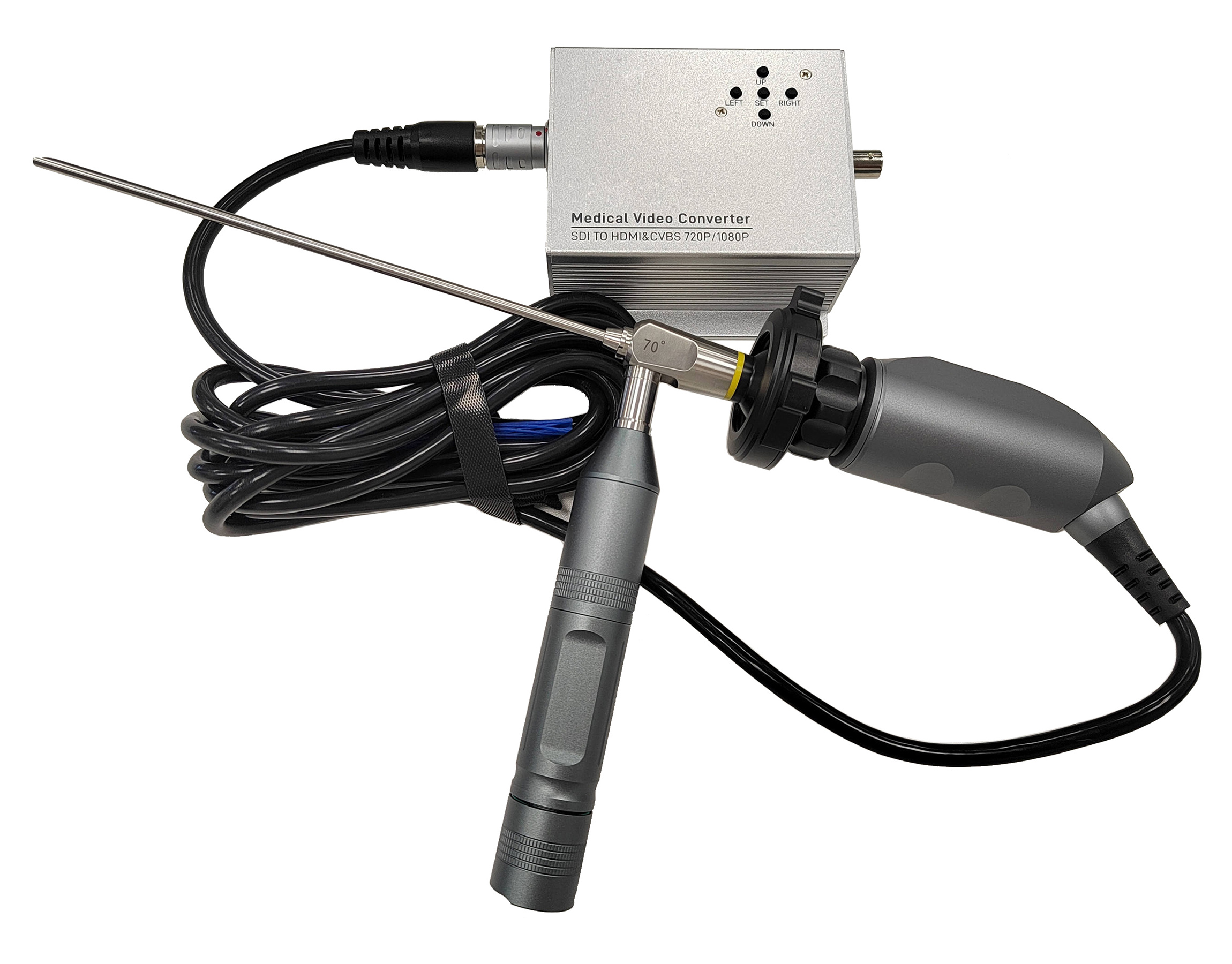

Product Composition Introduction:

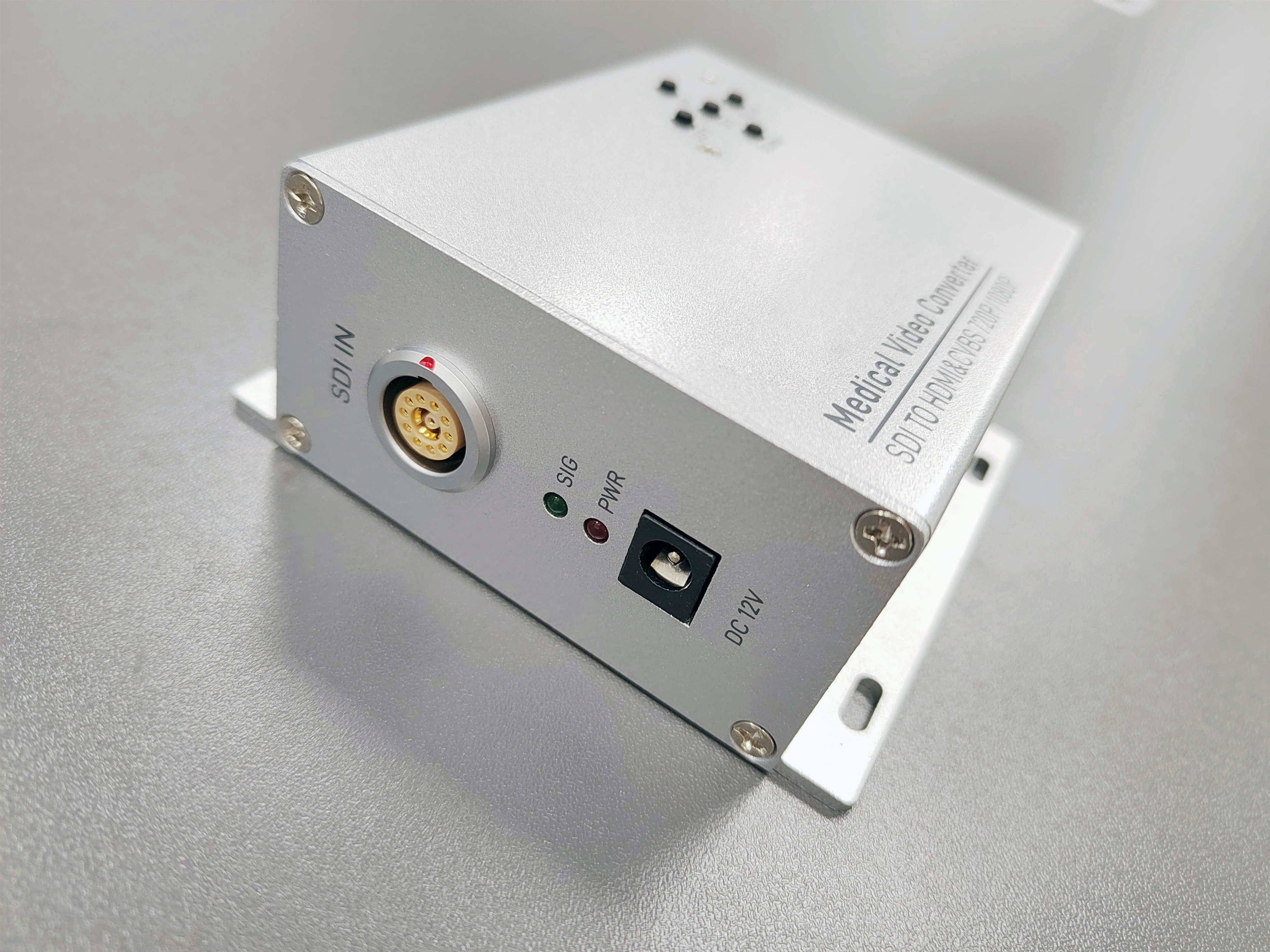

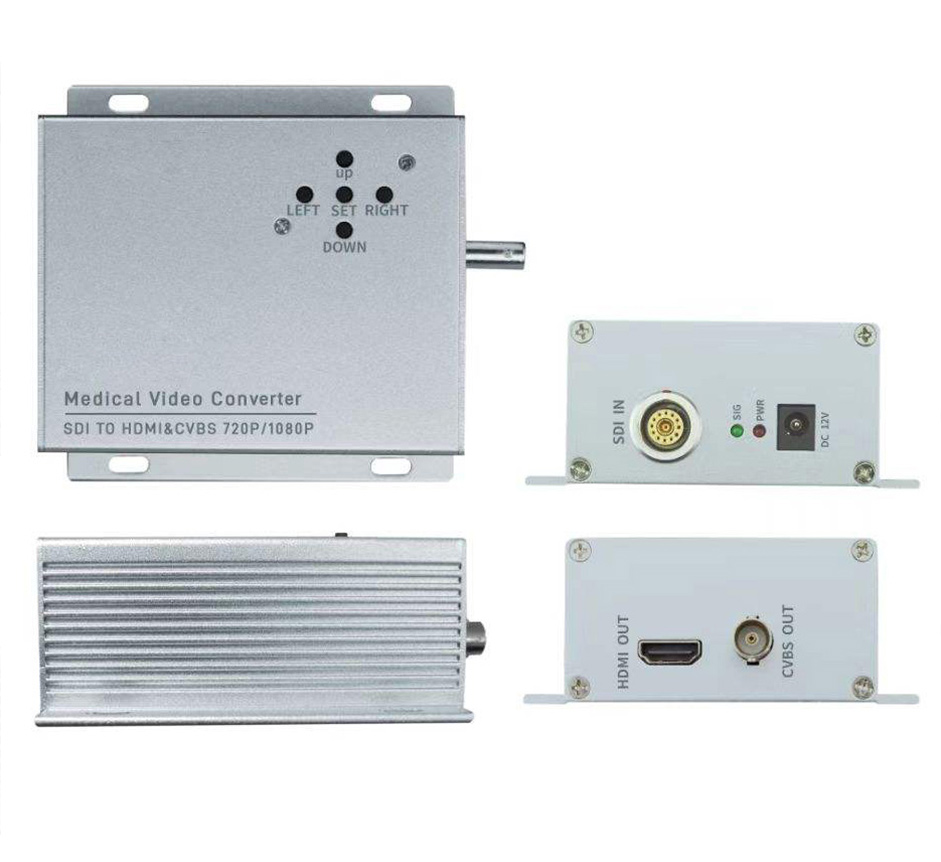

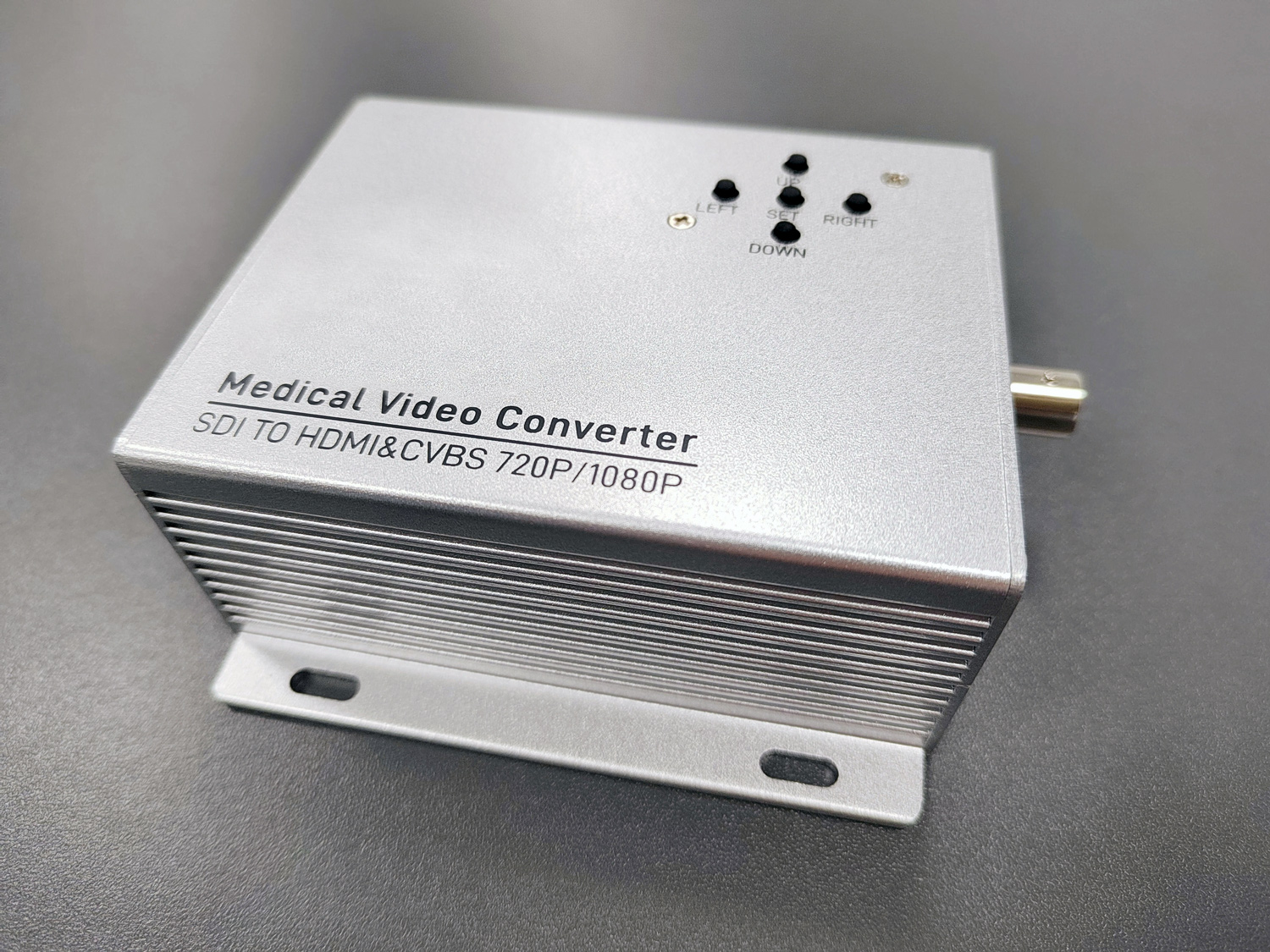

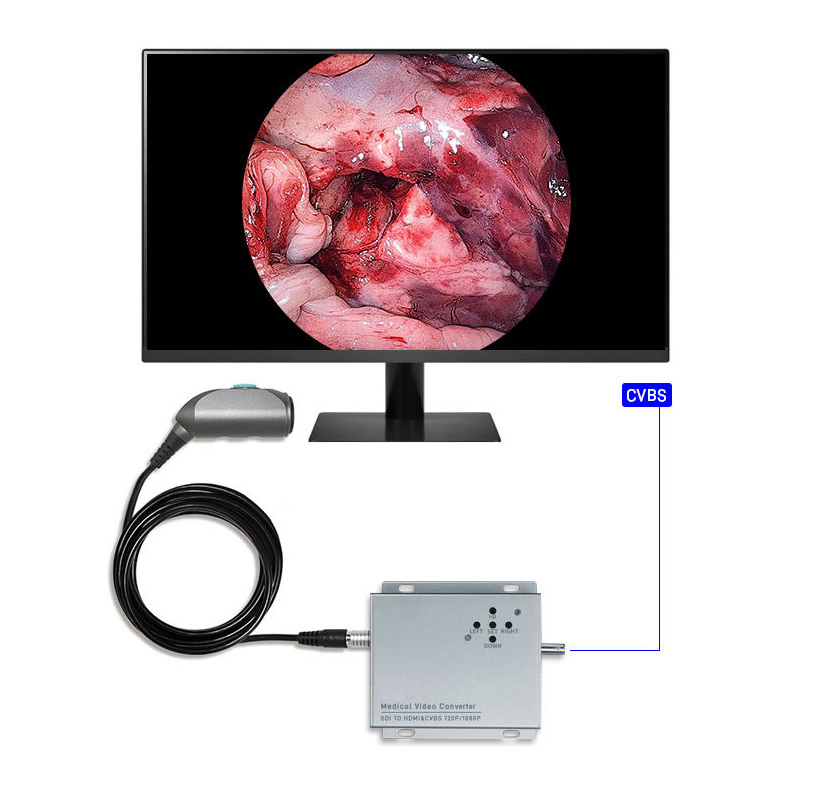

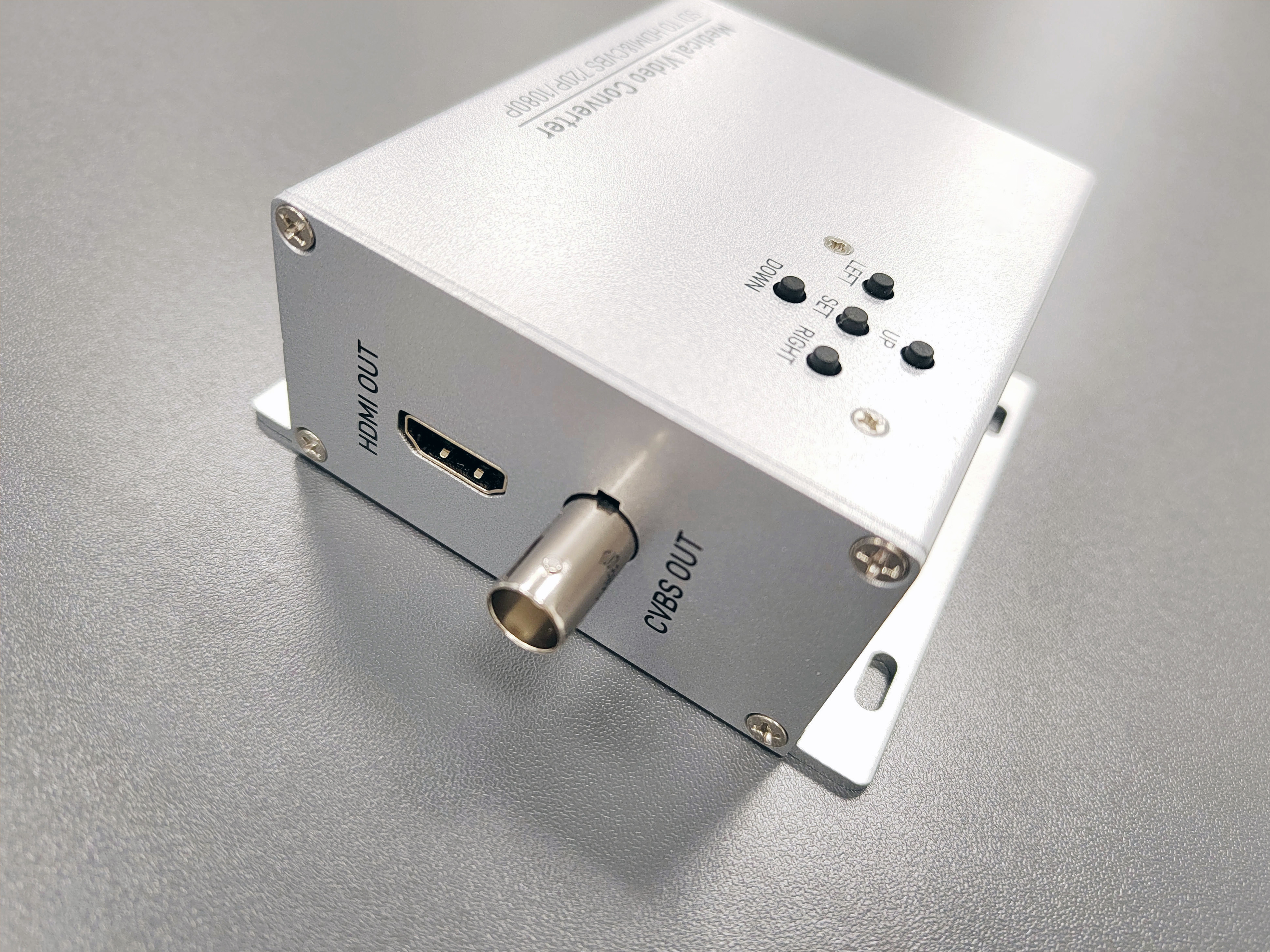

Full-featured endoscopy solution designed specifically for medical treatment. Multi-function handle camera, input SDI 1080P 60FPS , output CVBS(can change to SDI output)/HDMI, with OSD button on the image processor, easy operation and good performance.
H2MC Portable Endoscope Handle Camera Features:● Can be used in experiments, teaching, medical and other fields;● Using 3m medical silicone wire;● 2 million pixel HD SONY COMS;● HDMI signal external display display;● Light, simple and convenient.
