Full HD 1080p Medical Endoscopy Video Processor For Rigid ENT Endoscope Camera System
$605.00
Availability:
In stock
Out of stock
Weight
5 kg

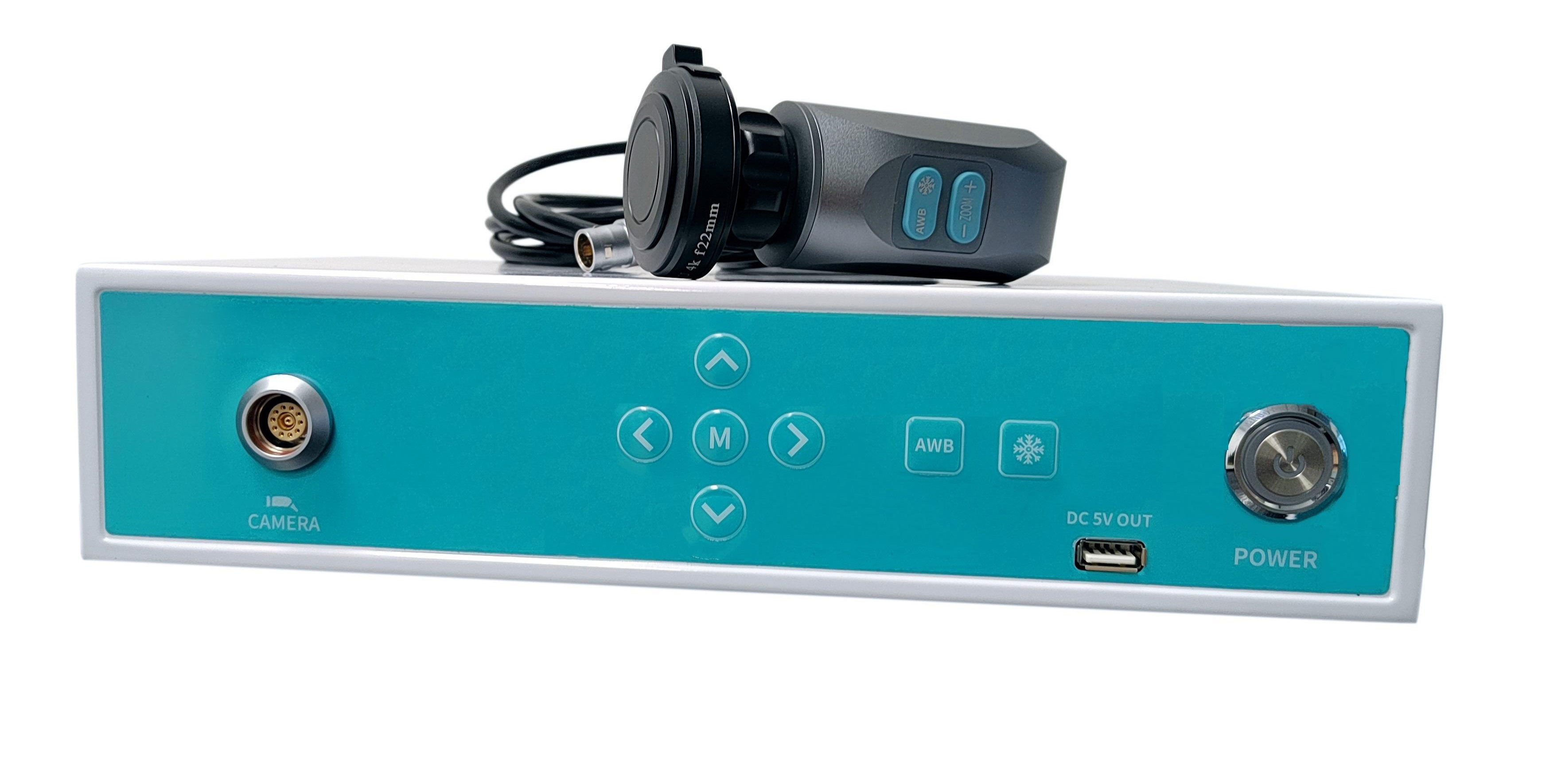

Full HD 1080p Medical Endoscopy Video Processor For Rigid ENT Endoscope Camera System
Resolution
Product Description
Product Parameters
Product Item No. | H2CF |
Parameters | |
Resolution | SDI:1080P@30fps,1080P@60fps |
Output | DVI+HDMI+SDI+CVBS |
Effective Pixels | 1845(H) × 1097(V)Approx. 2.13M pixels |
SDI | HD-SDI/EX-SDI switchable |
IMAGE SENSOR | 1/2.8” or 1/1.8" SONY CMOS(IMX385) |
BRIGHTNESS | 1-20 steps |
SHARPNESS | 1-20 steps |
BACKLIGHT | OFF/BLC/HLC/WDR |
AWB | Preset/Purshing |
FREZZ | SUPPORT |
D-ZOOM | Image zoom in /out |
Endoscope mode | PTED/Fiber/Arthroscope/Cystoscope/Hysteroscope/Laparoscope/ENT |
Working temperature | -10°C~+75 °C |
LANGUAGE | CHINESE/ENGLISH....etc |
Color ADJ | User Define: Yellow gain 1-250 Bule gain 1-250 Green gain 1-250 Red gain 1-250 Yellow Hue 1-250 Bule Hue 1-250 Green Hue 1-250 Red Hue 1-250 |
Power Supply | DC12V ±10%<1.7W |
Power consumption | 1 .2 W（≤100mA ） |
Working Current | 140mA±10mA |
Processor Size | 2000x1700x170mm |
Please Note | The optic endoscope is Recommend part. |
Product Color | Black and Blue color is available. |
Products Description
Cheap Price Full HD 1080P Endoscopy Video Processor for Rigid ENT Endoscope Camera System
Product Composition:
Endoscope camera system is fully functional endoscopy solutions of specifically designed for industrial medical.
1080P resolution, DVI+HDMI+SDI+CVBS output, there are control menu and shortcut key function. Widely used in medical industry.
H2CF Features:
● 1/2.8" SONY CMOS, 1080p resolution;
● 1-20 steps brightness adjustment, 1-20 steps sharpness, 1-10x D-zoom;
● FRESS, AWB, Multi- languages;
● 1-20 steps brightness adjustment, 1-20 steps sharpness, 1-10x D-zoom;
● FRESS, AWB, Multi- languages;
● It can be used for Arthroscopy, ENT, PTED(percutaneous transforaminal endoscopic discectomy), Cystoscope, Laparoscope, Hysteroscopy, Fiber nasopharyngoscope, fiber choledochoscopy, fber bronchoscope, fiber ureteroscope.
