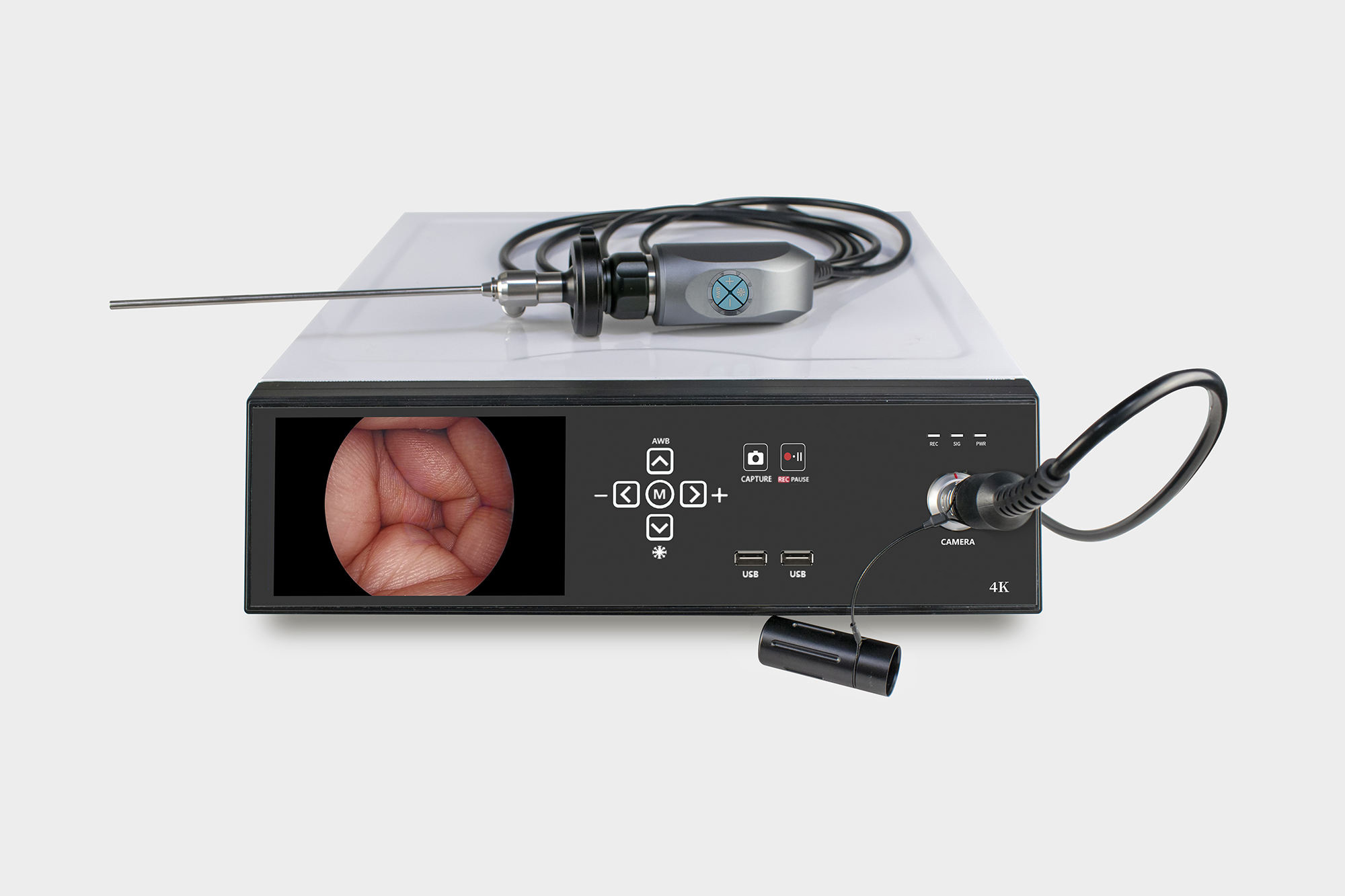

4K Ultra HD 6 Inch Monitor Laparoscopic Camera Medical Endoscope System With USB Record
$5,980.00
Availability:
In stock
Out of stock
Weight
5 kg
Resolution
Product Description
Product Parameters
Product Item No. | H8MR(4K Carema) |
System Parameters | ||
Input Interface | 4K | |

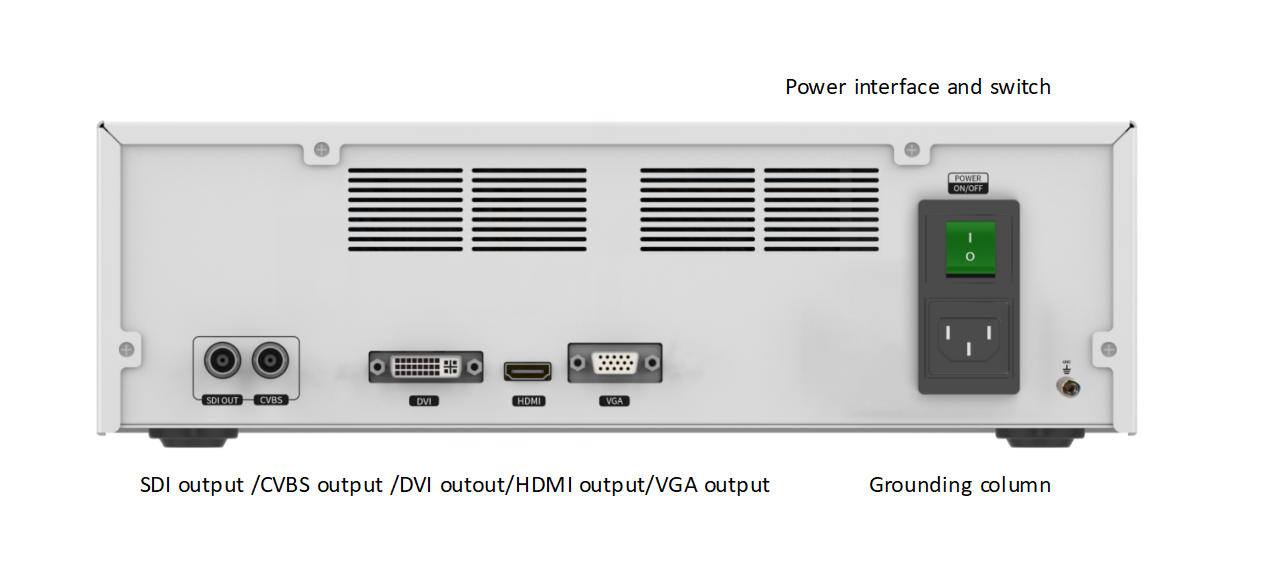

Output Interface | HDMI/SDI/CVBS/DVI/VGA | |
Keypad Control | Control the motherboard menu and shortcut keys through RX/TX | |
Power | AC110V~240V | |
U Disk | U disk USB2.0/USB3.0 (up to 32GB) to record and take photos | |
Shortcut Key Function | Freeze/white balance/video/photograph/digital zoom | |
SNR(Signal Noise Ratio) | <45db | |
Working Environment | -10°C~60°C | |
Product Size | L336*W330*H116mm | |
Net Weight | 3.9KG | |
Camera Parameters | ||
Image Sensor | 1/1.8” SONY CMOS | |
Effective Pixels | 3864(H) × 2192(V)Approx. 8.46M pixels | |
Resolution | SDI 4K | |
FREEZE | Support | |
AWB | Support | |
D-ZOOM | 0-8x | |
Brightness | 1-30 steps | |

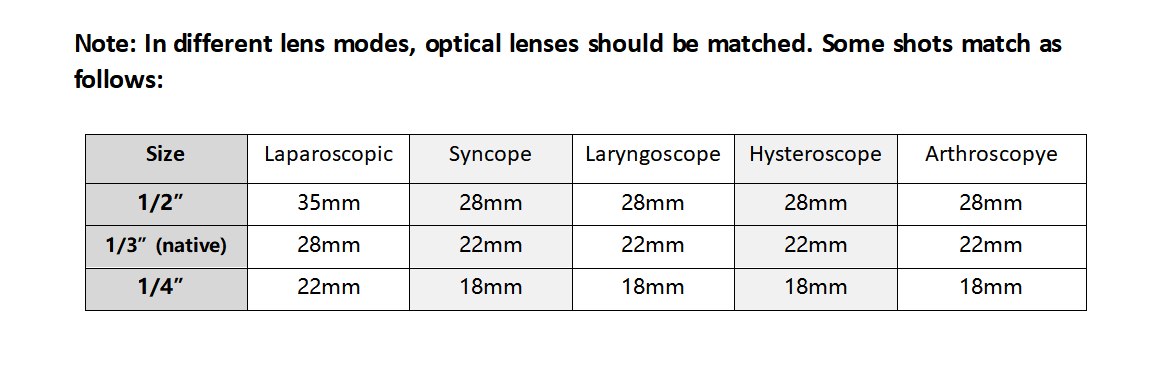

Lens Mode | Transforaminal/Fiber/Arthroscope/Cystoscope/Hystero/Raparoscope/E.N.T | |
Language | Chinese, English, Japanese, Korean and other languages | |
Working Environment | -30°C~60°C | |
Power(Max.) Supply | DC12V ±10%<1.7W | |
Working Current | 250mA±10mA | |
Products Description
Product composition:

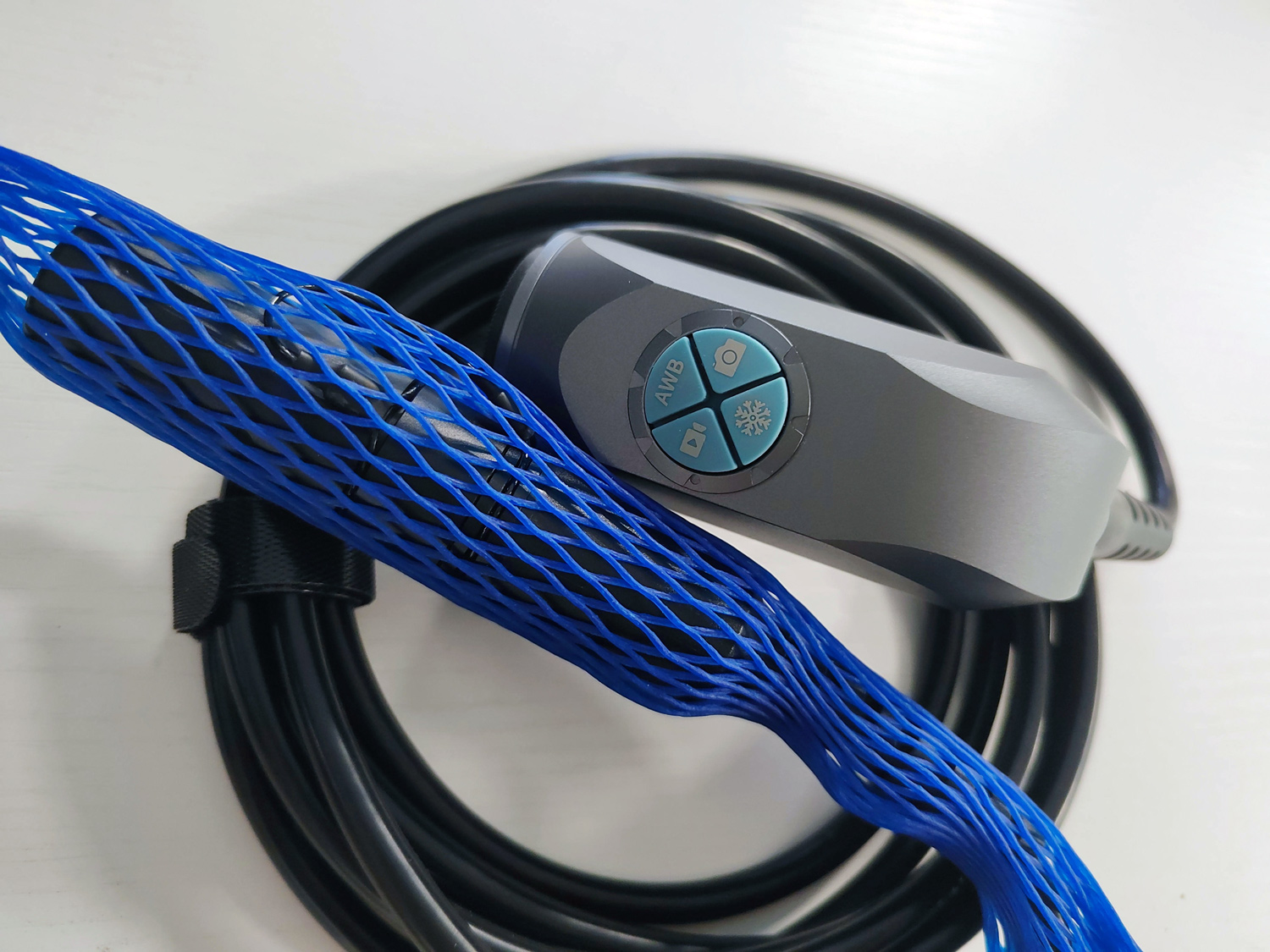

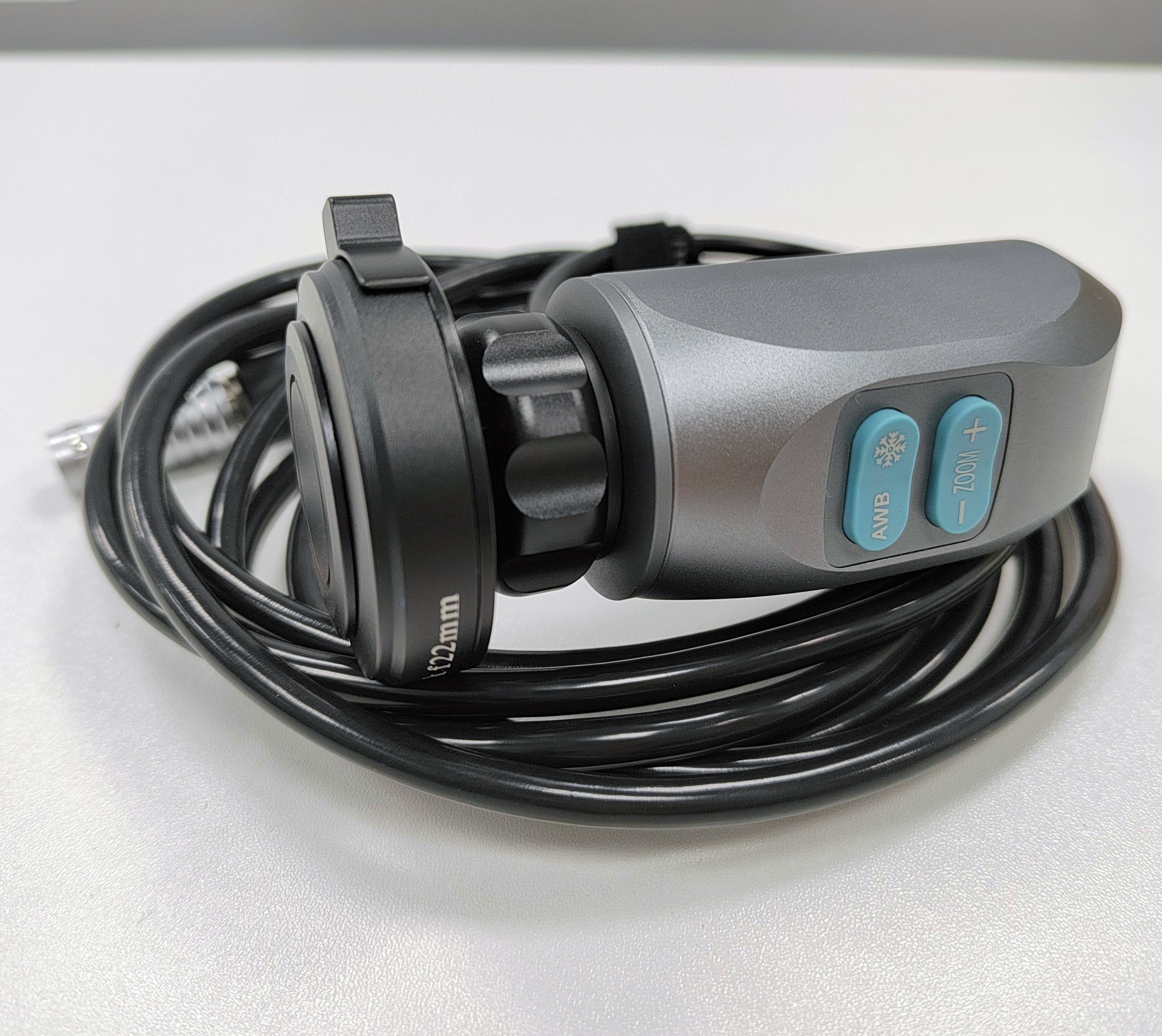

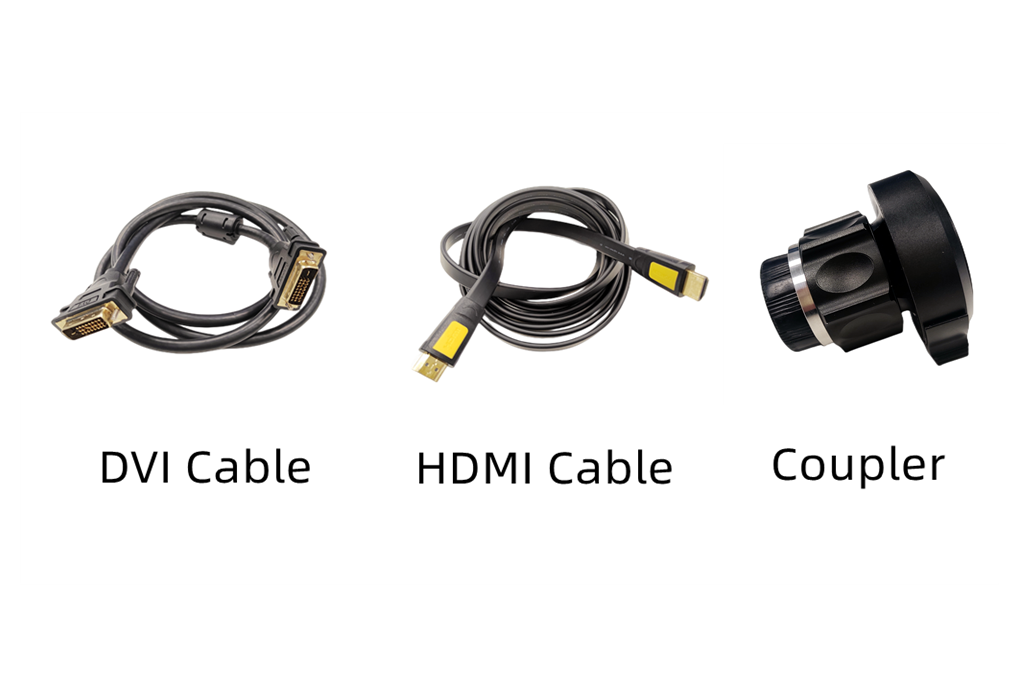

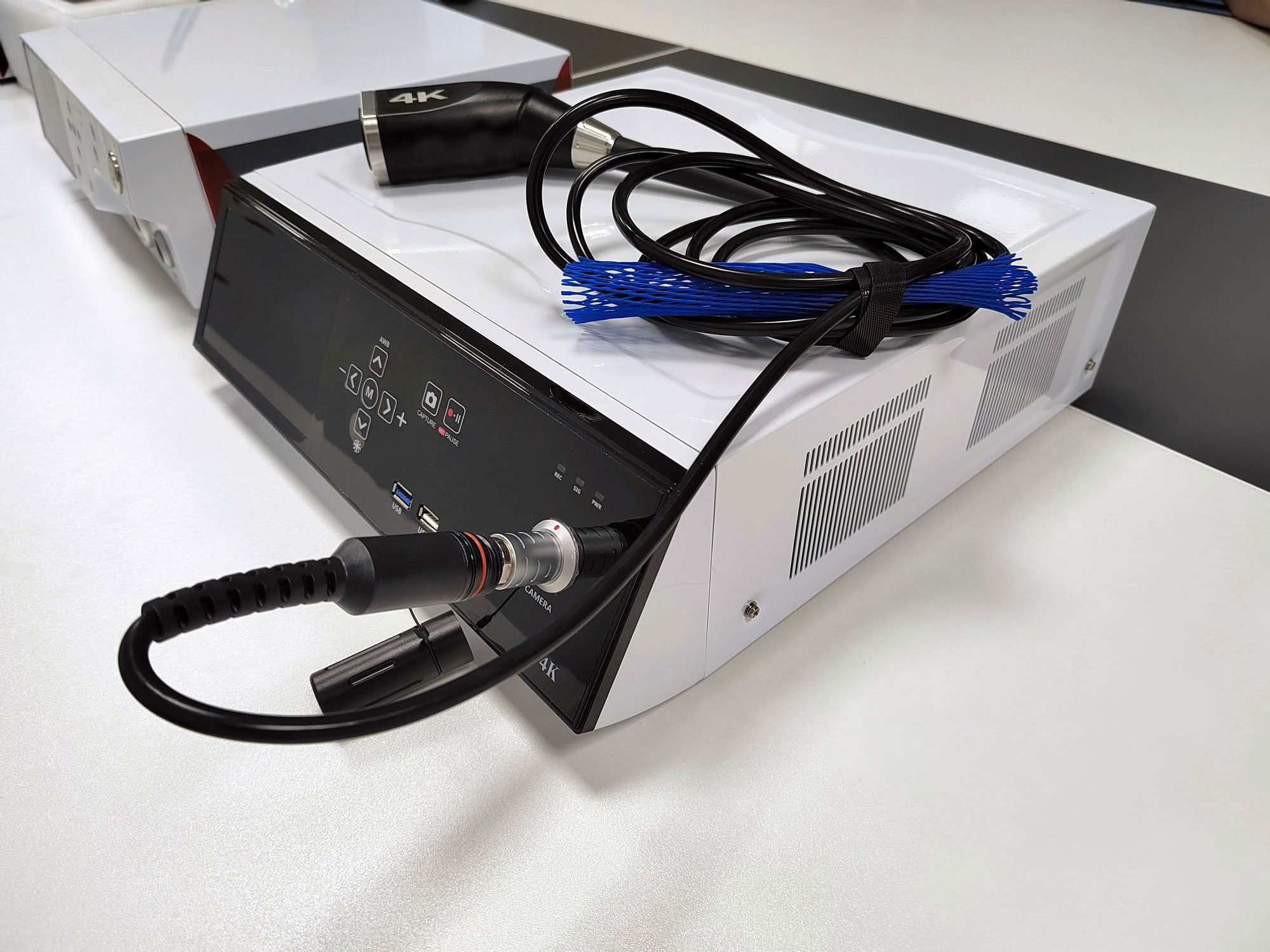

Endoscope imaging system consists of camera control system, handle camera and optical adapter (Optic Endoscope is recommend parts.)
Product Features:
1. Self-contained video recording system,

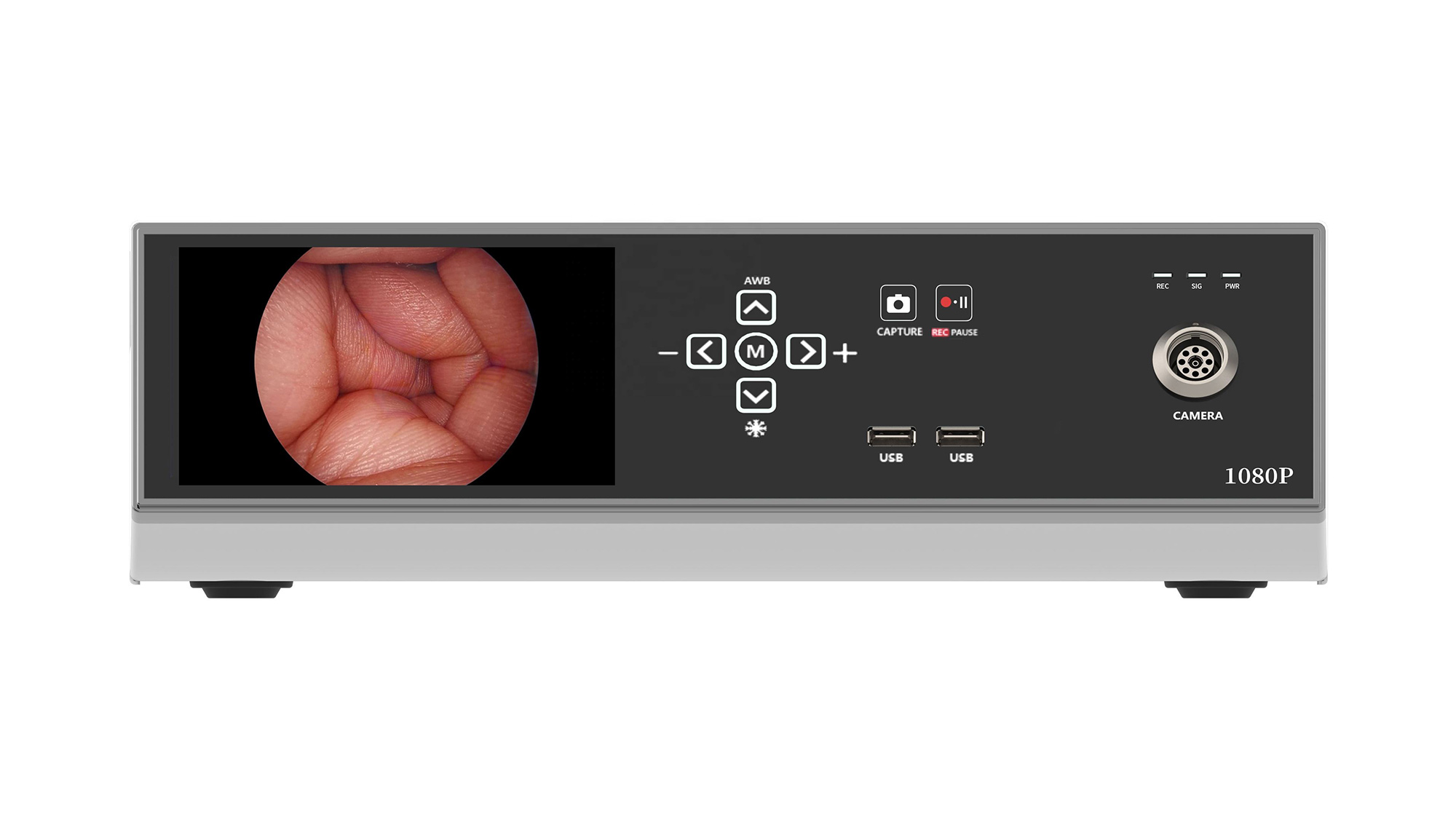

2. Comes with 6-inch display screen for real-time viewing;
3. Two built-in USB full HD video storage, can be connected to an external monitor;
4. One-key freeze, one-key white balance;
5. One-key photo/video function;
1. Self-contained video recording system,
2. Comes with 6-inch display screen for real-time viewing;
3. Two built-in USB full HD video storage, can be connected to an external monitor;
4. One-key freeze, one-key white balance;
5. One-key photo/video function;
Advanced medical grade environmental protection plant, more than 2000 square meters of office environment, has won a number of national product R&D patents, has passed the international quality system CE/FCC/ROSH
and a series of product certifications, providing OEM/ODM services for a number of national well-known enterprises.
