4K Digital Video Camera System Medical Endoscope Camera With Led Light Source
$6,098.00
Availability:
In stock
Out of stock
Weight
5 kg
Resolution
Product Description
Product Parameters
Product Item No. | H8MRL (4K Carema) |
System Parameters | |
Input Interface | SDI 4K 60FPS |
Output Interface | HDMI/SDI/CVBS/DVI/VGA |
Keypad Control | Control the mainboard menu and shortcut keys through RX/TX |
Power | AC110V~240V |
U Disk | U disk USB2.0/USB3.0 (up to 32GB) to record and take photos |
Shortcut Key Function | Freeze/White Balance/Video/Photo/Digital Zoom |
Noise | <45db |
Working Environment | -10°C~60°C |
Product Size | L336*W330*H116mm |
Net Weight | 4.3KG |
Camera Parameters | |
Image Sensor | 1/1.8” SONY CMOS |
Effective Pixels | 3864(H) × 2192(V)Approx. 8.46M Pixels |
Resolution | SDI 4K 60fps |
FREEZE | Support |
AWB | Support |
Min-illumination | Color:DSS:0.017LUX BW DSS: 0.008 LUX |
S/N Ratio (Signal to Noise Ratio) | More than 42Db(AGC off) |
D-ZOOM | Image zoom 1-8X |
Color | RED/GREEN/YELLOW/BLUE |
Brightness | 1-30 steps |
Sharpness | 1-40 steps |
Lens Mode | ENT/Abdominal/Bladder/Uterine/Joint/Foramen/Fiber/Custom |
Language | Chinese, English, Japanese, Korean and other languages |
Working Environment | -30°C~70°C |
Power(Max.) Supply | DC12V ±10% <3W |
Working Current | 250mA±10mA |
Light Source Parameters | |
Light Type | LED |
Rated Power | 100W |
Illuminance | 400W LUX |
Color Temperature | 5800-6500K |
Brightness Adjustment | Support |
Light Emitting Area (mm²) | 3.8 |
Products Description

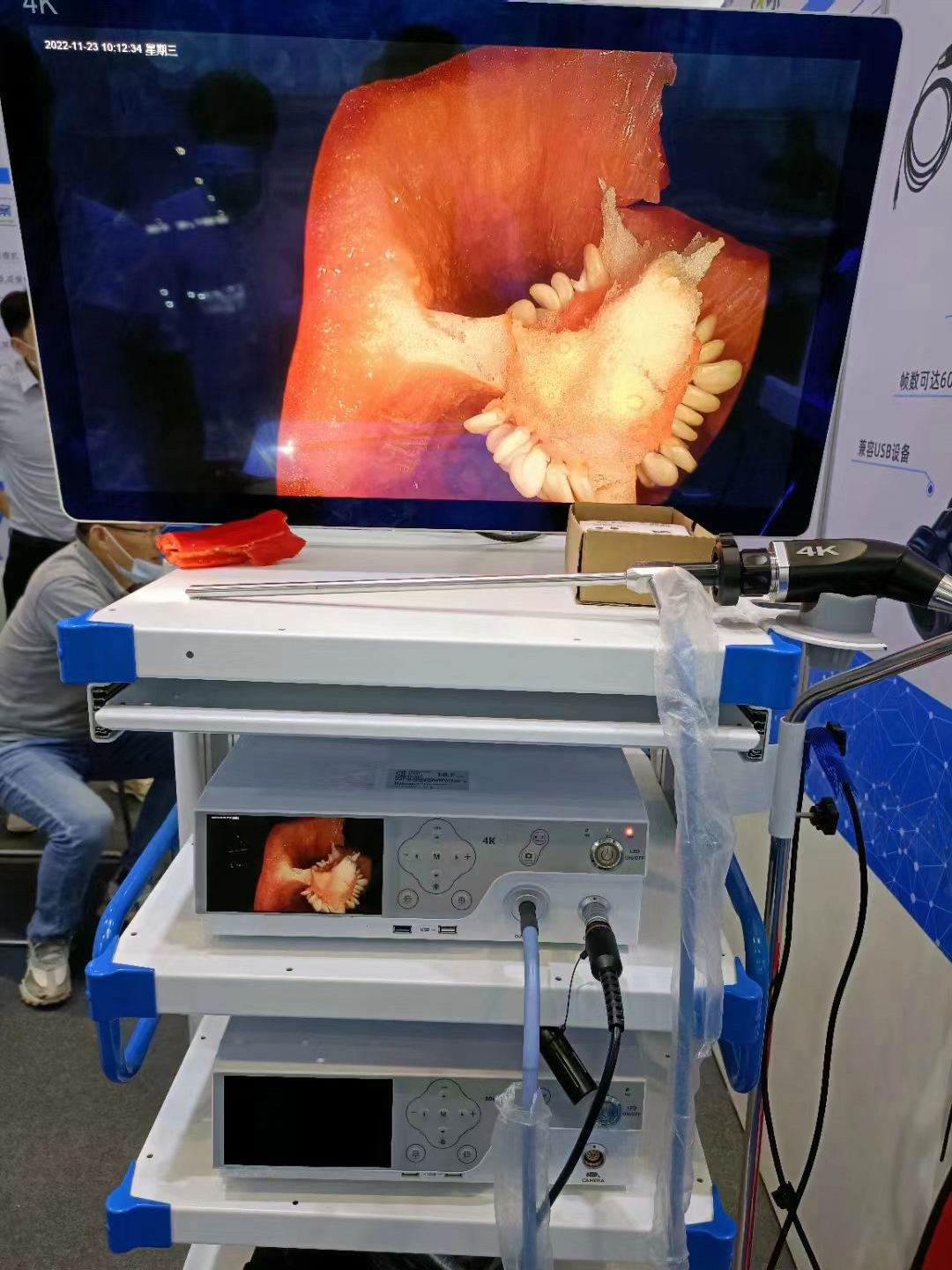

4K Digital Video Camera System Medical Endoscope Camera with LED Light Source
Product Composition Introduction:
The endoscope light source imaging system consists of a camera control system, a handle camera, a light guide and an optical adapter (optical interface).
● Self-contained video recording system, self-contained light source, and self-contained display screen;The endoscope light source imaging system consists of a camera control system, a handle camera, a light guide and an optical adapter (optical interface).
● Two built-in USB full HD image storage, 6-inch screen display;
● A variety of output signals, can be connected to an external monitor;
● One-key freeze, one-key white balance, one-key zoom in and out;
● With high-definition photo/video function;
● Brightness memory function, the brightness of the LED light source is not initialized with the shutdown, and automatically memorizes the brightness before shutdown after the startup
